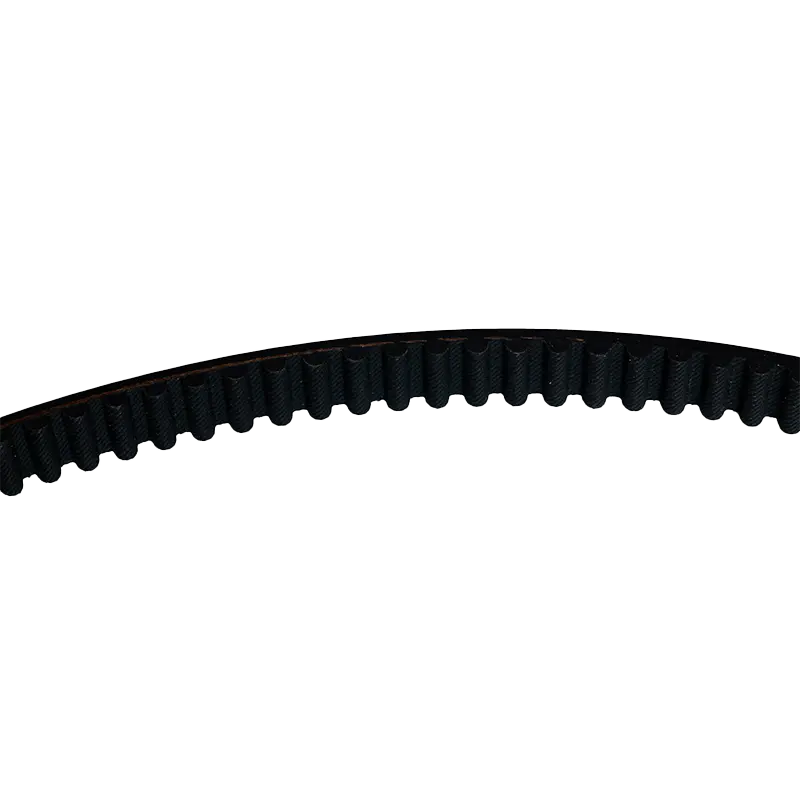

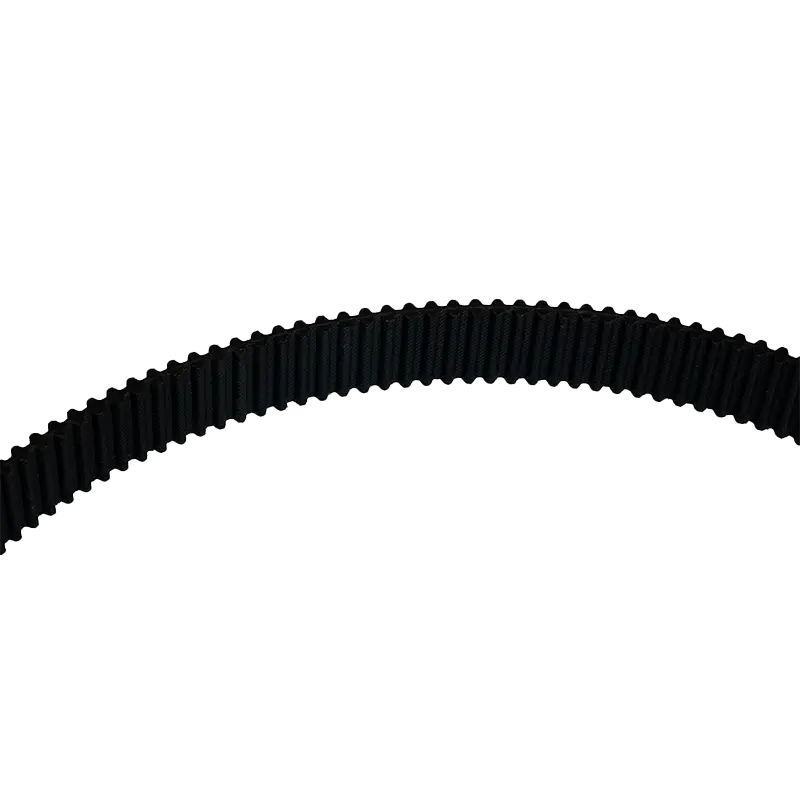

Rubber open timing belt | Precision transmission solutions | Support customized production
description1
description2
Specification
| TYPE | Open width | Length per roll |
| MXL | 25 | 100 |
| 31 | 80 | |
| 37 | 65 | |
| 50 | 100 | |
| XL | 25 | 65 |
| 31 | 100 | |
| 37 | 80 | |
| 50 | 65 | |
| L | 37 | 65 |
| 50 | 100 | |
| 62 | 80 | |
| 75 | 65 | |
| H | 62 | 120 |
| 75 | 95 | |
| T5 | 10mm | 85 |
| 15mm | 55 | |
| 20mm | 40 | |
| T10 | 10mm | 80 |
| 15mm | 110 | |
| 20mm | 80 | |
| S2M | 6mm | 100 |
| 9mm | 70 | |
| 10mm | 65 | |
| 12mm | 110 | |
| 15mm | 88 |
| TYPE | Open width | Length per roll |
| S3M | 6 | 100 |
| 9 | 70 | |
| 10 | 65 | |
| 12 | 55 | |
| 15 | 40 | |
| S5M | 9 | 130 |
| 10 | 120 | |
| 15 | 80 | |
| 20 | 60 | |
| S8M | 18 | 85 |
| 20 | 75 | |
| HTD3M | 6 | 100 |
| 9 | 70 | |
| 10 | 65 | |
| 12 | 110 | |
| 15 | 88 | |
| HTD5M | 9 | 90 |
| 10 | 80 | |
| 12 | 135 | |
| 15 | 110 | |
| 20 | 80 | |
| HTD8M | 10 | 75 |
| 12 | 120 | |
| 18 | 85 | |
| 20 | 75 |
advantages
Supports cutting of any length, smooth cut without burrs, and adapting to the transmission requirements of non-standard equipment.
Spot reserve: common specifications (HTD/STS/XL/L/H/T5/T10 optional), with common specifications 5000 meters in stock.
Industrial solutions
|
Industry |
Typical application scenarios |
Core value |
|

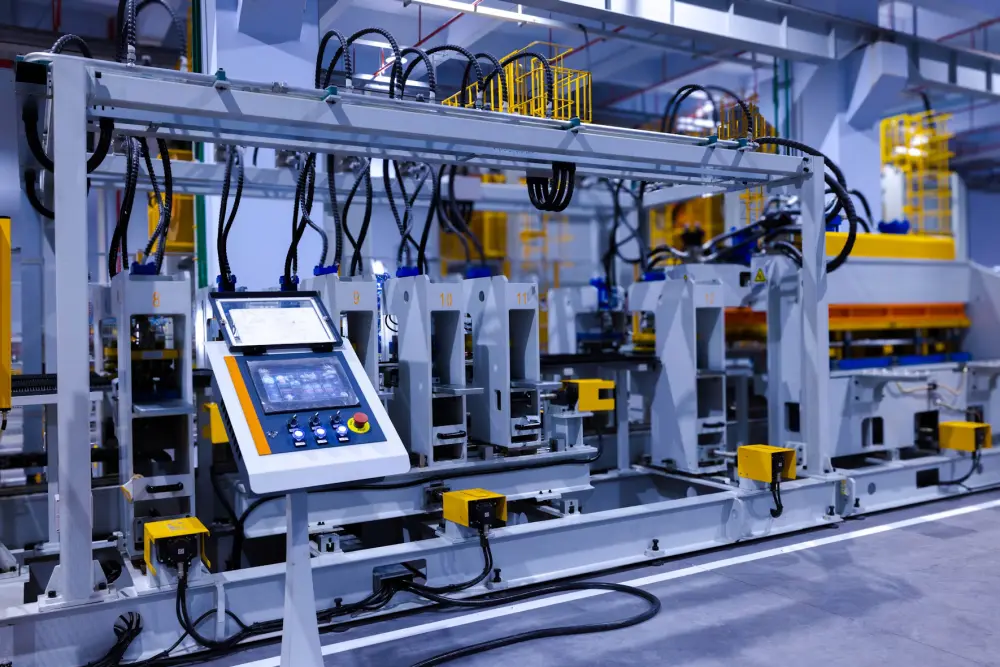

Automated production line |
Temporary production line modification/equipment debugging |
No need to wait for the customization cycle, quickly verify the transmission solution |
|
Printing and packaging machinery |
Drum tension adjustment/emergency repair and replacement |
Precise cutting length to avoid downtime losses |
|
Logistics sorting system |
Dynamic conveyor belt extension/modular expansion |
Flexible matching of equipment upgrade needs to save storage costs |
|
Laboratory equipment |
Prototype development/small batch trial production |
Low-cost trial and error to accelerate the R&D process |
Why choose us?
Full process inspection: raw material incoming inspection → production process testing → finished product outgoing inspection
International certification: ISO 9001 quality management system
2. Flexible customization service
Size customization: length and width can be customized freely
Technical guarantee: professional cutting technology, incision strength loss <3%, better than industry standards
3. Global service network
Fast delivery: China production base | 1000+ spot direct delivery
Technical support: free transmission system technical guidance | 7 to 15 days mass production delivery
