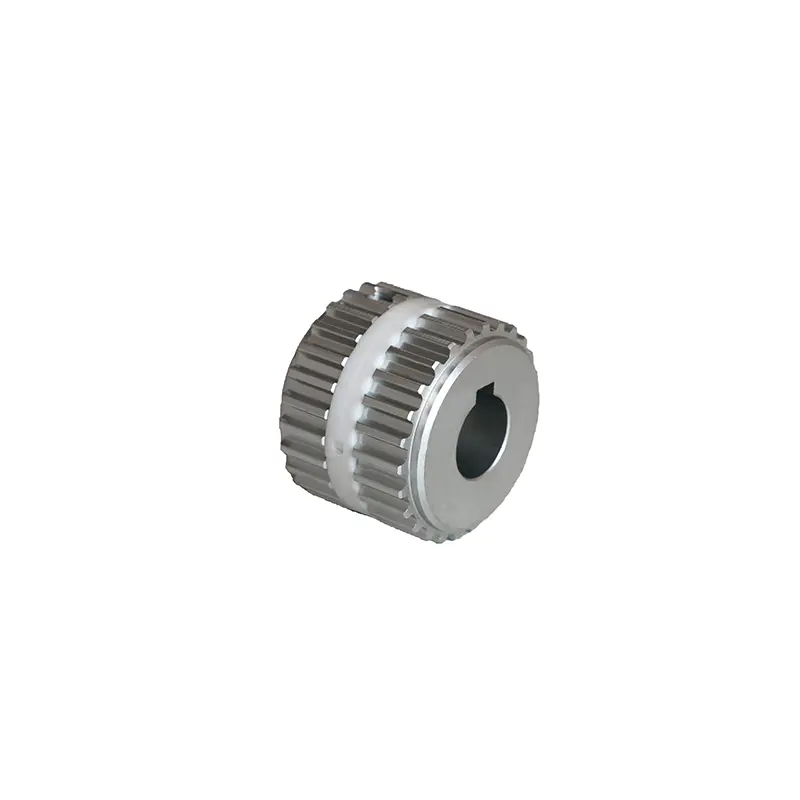

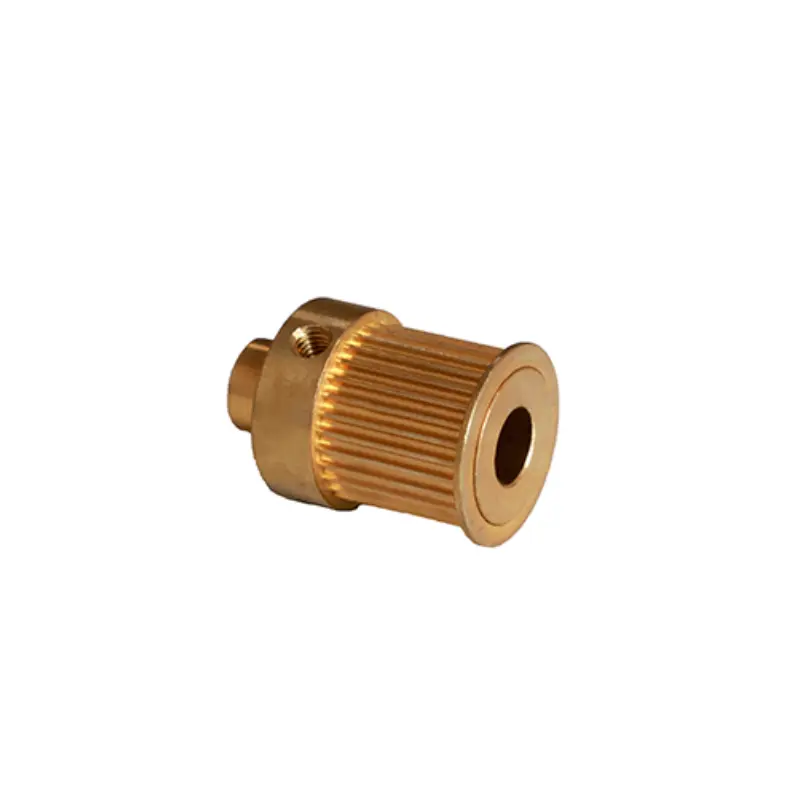

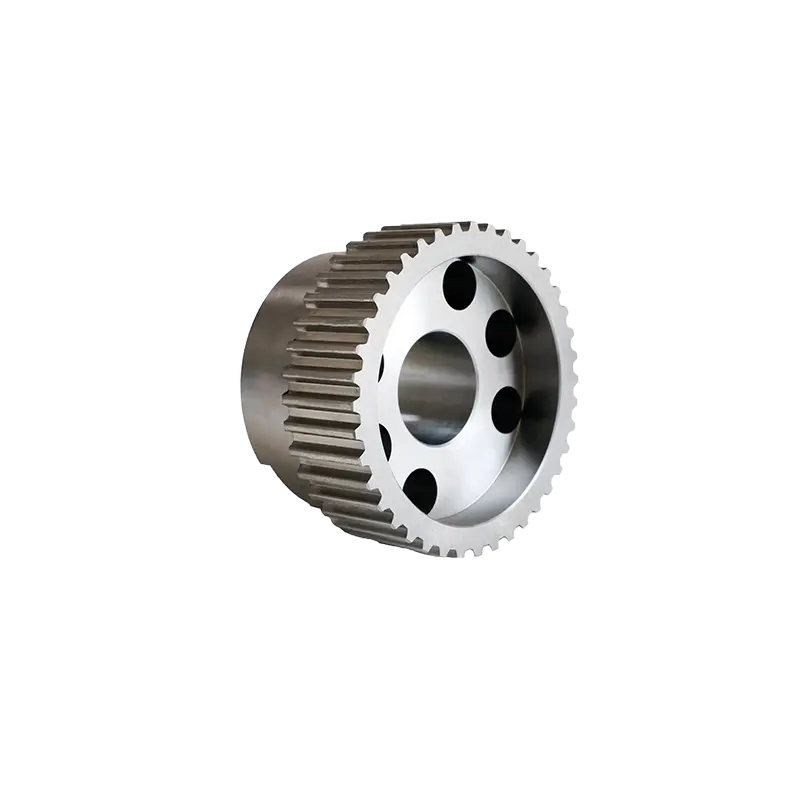

Precision synchronous pulley | High torque and wear resistance | Support customized production
description1
description2
Representation & shape code of pulley

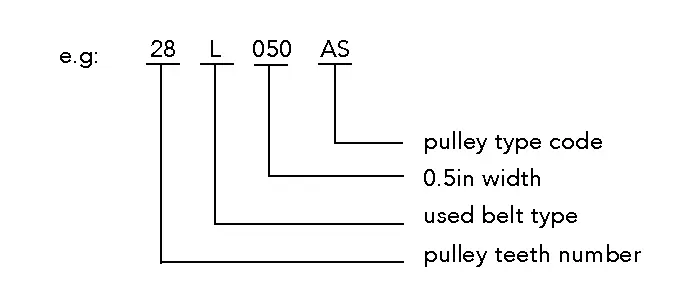

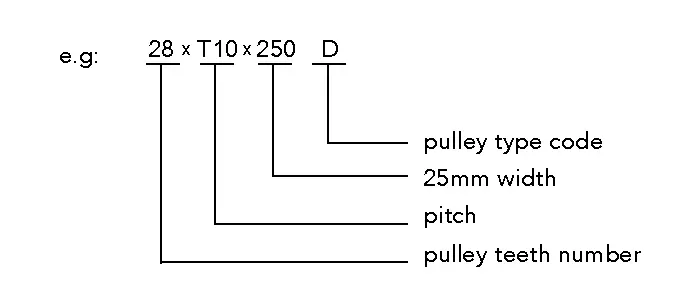

Representation of pulley

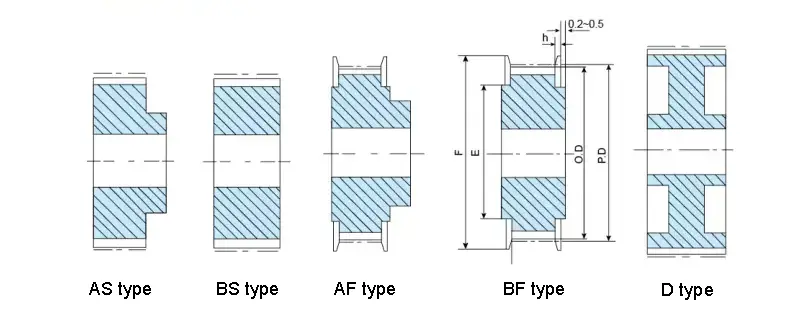

shape code of pulley

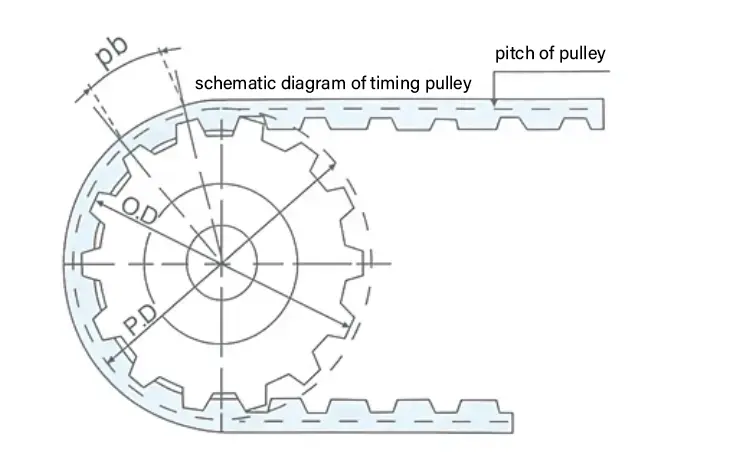

Specification
|
No |
tooth shape |
pitch code |
pitch |
belt tooth height |
belt thickness |
Angle |
pulley tooth height |
pitch line difference |
rib height |
|
1 |
Trapezoidal type |
MXL |
2.032 |
0.51 |
0.63 |
40° |
0.61 |
0.51 |
0.5 |
|
2 |
Trapezoidal type |
XL |
5.080 |
1.27 |
1.03 |
50° |
1.46 |
0.51 |
1.0 |
|
3 |
Trapezoidal type |
L |
9.525 |
1.91 |
1.69 |
40° |
2.21 |
0.76 |
1.5 |
|
4 |
Trapezoidal type |
H |
12.700 |
2.29 |
2.01 |
40° |
2.71 |
1.38 |
2.0 |
|
5 |
Trapezoidal type |
XH |
22.225 |
6.35 |
4.85 |
40° |
7.10 |
2.79 |
4.8 |
|
6 |
Trapezoidal type |
XXH |
31.750 |
9.53 |
6.17 |
40° |
10.25 |
3.05 |
6.1 |
|
7 |
Special pitch |
T2.5 |
2.5 |
0.7 |
0.6 |
40° |
0.75 |
0.53 |
1.5 |
|
8 |
Special pitch |
T5 |
5 |
1.2 |
1.0 |
40° |
1.25 |
0.85 |
2.0 |
|
9 |
Special pitch |
T10 |
10 |
2.5 |
2.0 |
40° |
2.60 |
1.85 |
3.4 |
|
10 |
Special pitch |
T20 |
20 |
5.0 |
3.0 |
40° |
5.20 |
2.83 |
4.5 |
|
11 |
HTD type |
3M |
3 |
1.22 |
1.23 |
14° |
1.48 |
0.76 |
2.25 |
|
12 |
HTD type |
5M |
5 |
2.06 |
1.74 |
14° |
2.29 |
1.14 |
3 |
|
13 |
HTD type |
8M |
8 |
3.38 |
2.62 |
14° |
3.62 |
1.37 |
4.1 |
|
14 |
HTD type |
14M |
14 |
6.02 |
3.98 |
14° |
7.10 |
2.79 |
5.5 |
|
15 |
HTD type |
20M |
20 |
8.40 |
4.80 |
14° |
8.6 |
4.32 |
6.4 |
|
16 |
Special pitch |
AT3 |
3 |
1.10 |
0.80 |
50° |
0.7 |
0.35 |
1.5 |
|
17 |
Special pitch |
AT5 |
5 |
1.20 |
1.50 |
50° |
1.2 |
0.84 |
2 |
|
18 |
Special pitch |
AT10 |
10 |
2.50 |
2.00 |
50° |
2.5 |
1.85 |
3.4 |
|
19 |
Special pitch |
AT20 |
20 |
5.00 |
3.00 |
50° |
5.1 |
2.20 |
4.5 |
|
20 |
STD type |
S2M |
2 |
0.76 |
0.60 |
/ |
0.75 |
0.51 |
2 |
|
21 |
STD type |
S3M |
3 |
1.14 |
0.75 |
/ |
1.2 |
0.76 |
2.25 |
|
22 |
STD type |
S4.5M |
4.5 |
1.71 |
1.1 |
/ |
1.75 |
0.84 |
2.5 |
|
23 |
STD type |
S5M |
5 |
1.91 |
1.49 |
/ |
1.8 |
0.96 |
3 |
|
24 |
STD type |
S8M |
8 |
3.05 |
2.25 |
/ |
2.9 |
1.37 |
4.1 |
|
25 |
STD type |
S14M |
14 |
5.3 |
4.9 |
/ |
4.85 |
2.79 |
5.5 |
|
26 |
GT type |
1.5GT |
1.5 |
0.56 |
0.44 |
/ |
0.6 |
0.39 |
1.8 |
|
27 |
GT type |
2GT |
2 |
0.71 |
0.81 |
/ |
0.8 |
0.55 |
2 |
|
28 |
GT type |
3GT |
3 |
1.12 |
1.29 |
/ |
1.26 |
0.76 |
2.25 |
|
29 |
GT type |
5GT |
5 |
1.92 |
1.89 |
/ |
2.2 |
1.14 |
3 |
|
30 |
GT type |
8GT |
8 |
3.4 |
2.2 |
/ |
3.7 |
1.37 |
4.1 |
|
31 |
GT type |
14GT |
14 |
6.0 |
4 |
/ |
6.15 |
2.79 |
5.5 |
|
32 |
module type |
1m |
3.142 |
0.8 |
0.6 |
40° |
1.28 |
0.5 |
1.5 |
|
33 |
module type |
1.5m |
4.712 |
0.9 |
0.75 |
40° |
1.42 |
0.73 |
1.7 |
|
34 |
module type |
2m |
6.283 |
1.2 |
1 |
40° |
1.86 |
1 |
2 |
|
35 |
module type |
2.5m |
7.854 |
1.5 |
1.25 |
40° |
2.22 |
1.25 |
2.3 |
|
36 |
module type |
3m |
9.425 |
1.8 |
1.5 |
40° |
2.64 |
1.5 |
2.7 |
|
37 |
module type |
4m |
12.566 |
2.4 |
2 |
40° |
3.45 |
2 |
3.4 |
|
38 |
module type |
5m |
15.708 |
3.0 |
2.5 |
40° |
4.3 |
2.5 |
3.95 |
|
39 |
module type |
7m |
21.991 |
4.2 |
3.5 |
40° |
5.5 |
3.5 |
5 |
|
40 |
module type |
10m |
31.416 |
6.0 |
5 |
40° |
7.3 |
5 |
6.6 |
Applicable industries and scenarios
New energy vehicles: motor drive system, battery assembly line precision transmission
Food packaging: filling machine synchronization control, conveyor belt power distribution
Medical equipment: CT machine rotation mechanism, pharmaceutical equipment sterile environment transmission

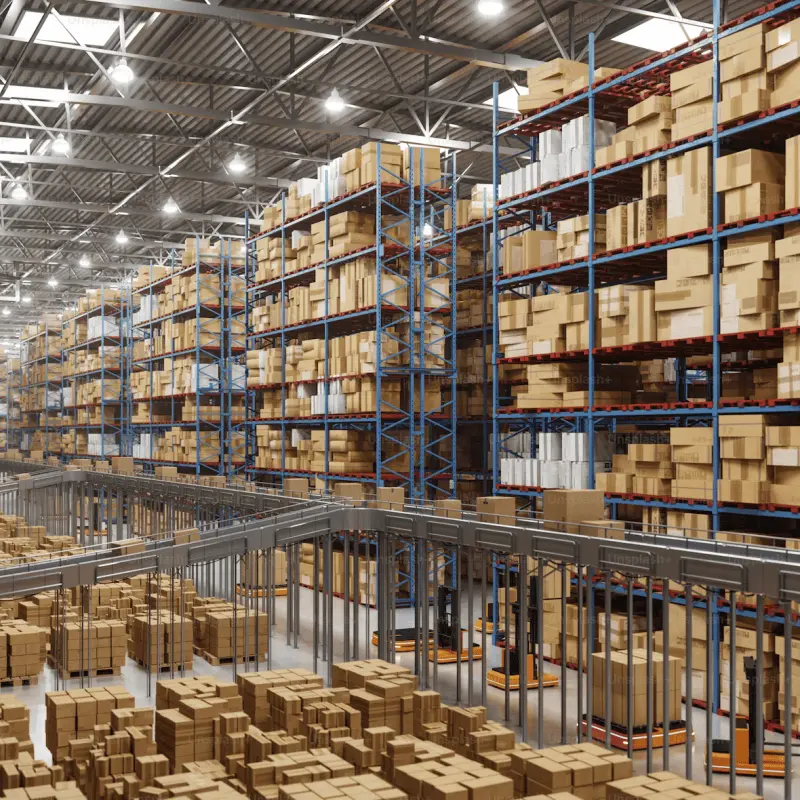

Logistics warehousing: AGV trolley drive wheel, sorting machine high-speed synchronization system
Why choose us?
Full process inspection: raw material incoming inspection → production process testing → finished product outgoing inspection
International certification: ISO 9001 quality management system
2. Flexible customization service
Size customization: length and width can be customized freely
Special needs: Quiet, wear-resistant, corrosion-resistant
3. Global service network
Fast delivery: China production base | 1000+ spot direct delivery
Technical support: free transmission system technical guidance | 7 to 15 days mass production delivery
If you are interested in our products, please feel free to contact us, we will be happy to serve you.
